Jianglin Stainless Steel has been a global manufacturer of stainless steel for over a decade. Stainless steel tubes, renowned for their remarkable qualities, have earned a well-deserved reputation in diverse industries, including construction, medicine, and food and beverage. These tubes are not just functional; they are synonymous with hygienic excellence. Thanks to their non-porous surface, they eliminate the potential for bacterial growth and contamination. Architects turn to their sleek and shiny surfaces to bring their architectural designs to life, and the plasticity of stainless steel allows for the creation of complex medical instruments and architectural features that require flexibility.
Various Application of Stainless Tube/Pipe: Numerous industries have already reaped the benefits of our stainless steel tubes, including the construction industry, which relies on the durability and design possibilities these tubes offer, from structural supports to architectural features. In the medical field, the hygienic nature of these tubes is essential for surgical instruments, and their flexibility paves the way for innovation in medical device design. Furthermore, beyond construction and medical applications, the food and beverage industry, known for its impeccable hygiene standards, depends on these tubes from manufacturing to distribution to preserve quality and minimize contamination risks.
Are you ready to join these industries and experience innovation and reliability? Contact us today and invest in the progress of your projects with stainless steel tubes that deliver unwavering hygienic performance, aesthetic appeal, and unmatched plasticity.
Property Of Stainless Steel Tube/Pipe
| Chemical Analysis (%) Specified | |||||||||
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Other |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 18.0 – 20.0 | – | 8.0 – 10.5 | N: 0.1 |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 18.0 – 20.0 | – | 8.0 – 12.0 | N: 0.1 |
| 304H | 0.04 – 0.10 | 0.75 | 2 | 0.045 | 0.03 | 18.0 – 20.0 | – | 8.0 – 10.5 | N: 0.1 |
| 309S | 0.08 | 1 | 2 | 0.045 | 0.03 | 22.0 – 24.0 | – | 12.0 – 15.0 | – |
| 310 | 0.08 | 1.5 | 2 | 0.035 | 0.03 | 24.0 – 26.0 | – | 19.0 – 22.0 | – |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 16.0 – 18.0 | 2.0 – 3.0 | 12.0 – 15.0 | N: 0.1 |
| 321 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17.0 – 19.0 | – | 9.0 – 13.0 | N: 0.1 Ti: 5.0 |
| 321L | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 17.0 – 19.0 | – | 9.0 – 12.0 | N: 0.1 Ti: 5.0 |
| Chemical Analysis (%) Specified | |||||||||
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Other |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 18.0-20.0 | – | 8.0-10.5 | N:0.1 |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 18.0-20.0 | – | 8.0-12.0 | N:0.1 |
| 304H | 0.04-0.10 | 0.75 | 2 | 0.045 | 0.03 | 18.0-20.0 | – | 8.0-10.5 | N:0.1 |
| 309S | 0.08 | 1 | 2 | 0.045 | 0.03 | 22.0-24.0 | – | 12.0-15.0 | – |
| 310 | 0.08 | 1.5 | 2 | 0.035 | 0.03 | 24.0-26.0 | – | 19.0-22.0 | – |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 16.0-18.0 | 2.0-3.0 | 12.0-15.0 | N:0.1 |
| 321 | 0.08 | 1 | 2 | 0.045 | 0.03 | 17.0-19.0 | – | 9.0-13.0 | N:0.1 Ti:5.0 |
| 321L | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 17.0-19.0 | – | 9.0-12.0 | N:0.1 Ti:5.0 |
| Mechanical Properties Specified (min) | ||||
| Grade | Tensile Strength MPa | Yield Strength (0.2% offset) MPa | Elongation % in 50mm | Hardness (max) |
| 304 | 515 | 205 | 40 | 92 HRB |
| 304L | 485 | 170 | 40 | 88 HRB |
| 304H | 515 | 205 | 40 | 92 HRB |
| 309S | 515 | 205 | 40 | 81 HRB |
| 310 | 550 | 245 | 45 | 83 HRB |
| 316L | 485 | 170 | 40 | 95 HRB |
| 321 | 520 | 205 | 40 | 90 HRB |
Application Of Stainless Steel Tube/Pipe
Medical Industry
Chemical Processing
Aircraft Industry
Pipeline
Automobile Industry

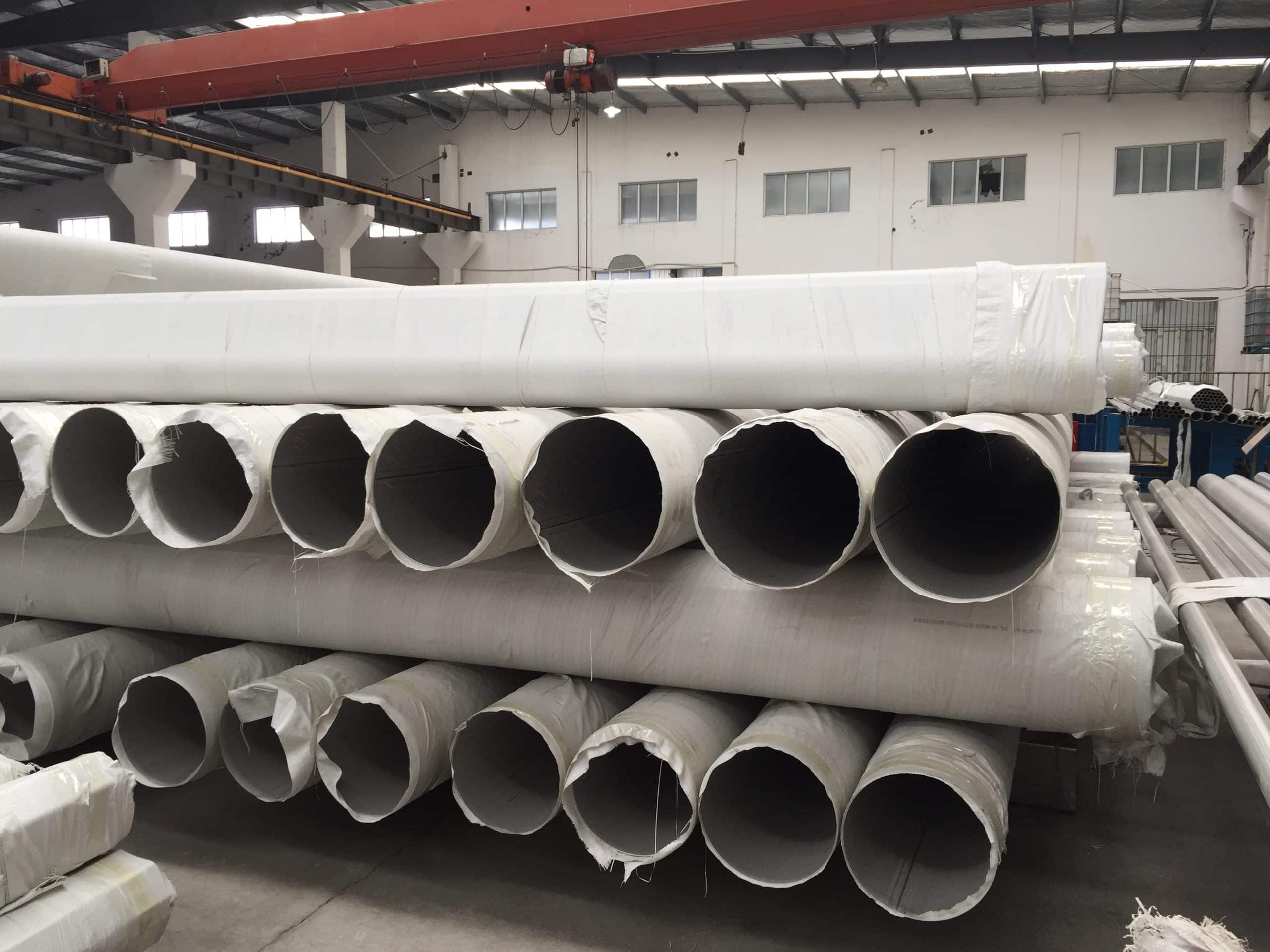

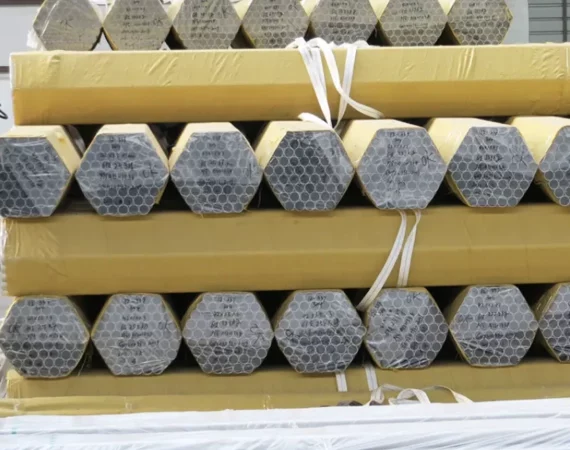

Package Of Stainless Steel Tube/Pipe
